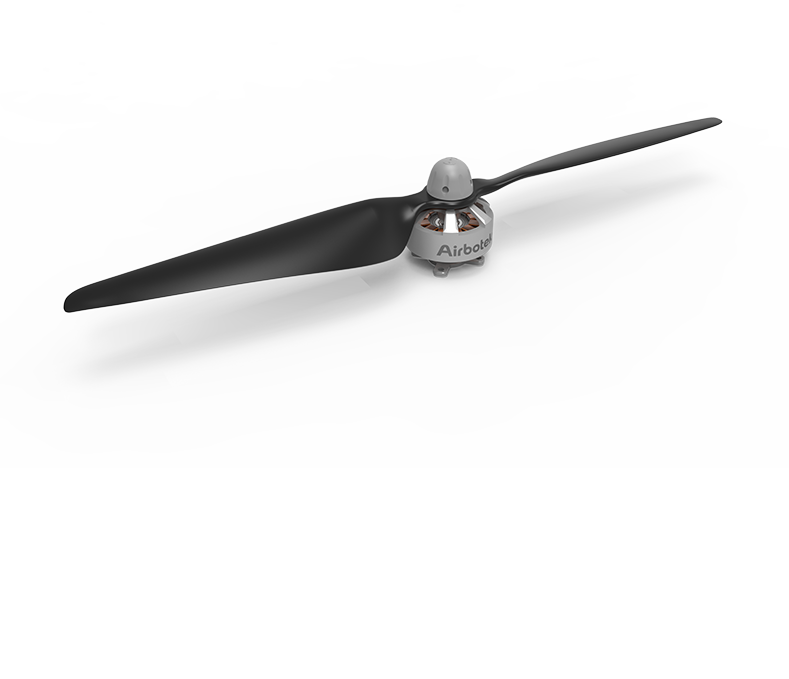

A2808 Propulsion System

A propulsion system made just for lightweight consumer drone. A combination of motor BL2808 and propeller R1185 that assures monoaxial rated thrust of 500g, max thrust of 1.25kg and provides efficient power for consumer drones.

Specifications:

  • Max Thrust: 1.25kg/Axis (15.2V, horizon)
  • Recommended Takeoff load: ≤500g/axis
  • Recommended Battery: 4S Li-Po
  • Operation Ambient Temperature: -10 to 40℃
  • Motor KV: 685rpm/V
  • Motor Weight: 70g (wires included)
  • Max Current: 14A
  • Propeller Diameter and Wheelbase: 300 x 127mm
  • Single Propeller weight: 14g





Lightweight Design


A compact, lightweight and aesthetic design with propeller adapter integrated for simplicity.





Propeller Retainer and Vibration-Proof

Patented propeller and motor structure design that is safe, reliable, precise for optimal flight performance.





Electromagnetic Design


Advanced electromagnetic design with significant higher efficiency, lower noise and faster response with GTR FOC ESC.





High performance cooling system

The optimized openings in the case enables BL2808 to reduce weight and efficiently cool down during operation.
